abietec_MDBT42TV-DB-05

MDBT42TV-DB-05

* Module Demo Board built by MDBT42TV-192K
* Nordic nRF52805 SoC Solution
* A recommended 3rd-party module by Nordic Semiconductor.
* BT5.4 & BT5.2 & BT5.1 & BT5 Bluetooth Specification Certified
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC
* 32-bit ARM® Cortex™ M4 CPU
* 192kB Flash Memory / 24kB RAM
* RoHS & Reach Compliant.
* 10 GPIO
* Chip Antenna
* Interface: SPI, UART, I2C, PWM
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy and 2.4GHz ultra low-power wireless applications.
BUY FROM
PRODUCT INFO
SPECIFICATION
DOCUMENT
MDBT42TV-DB-05 demo board is designed for quick testing and debugging without building your own board. The board is only available with MDBT42TV-192K (Chip Antenna) module.

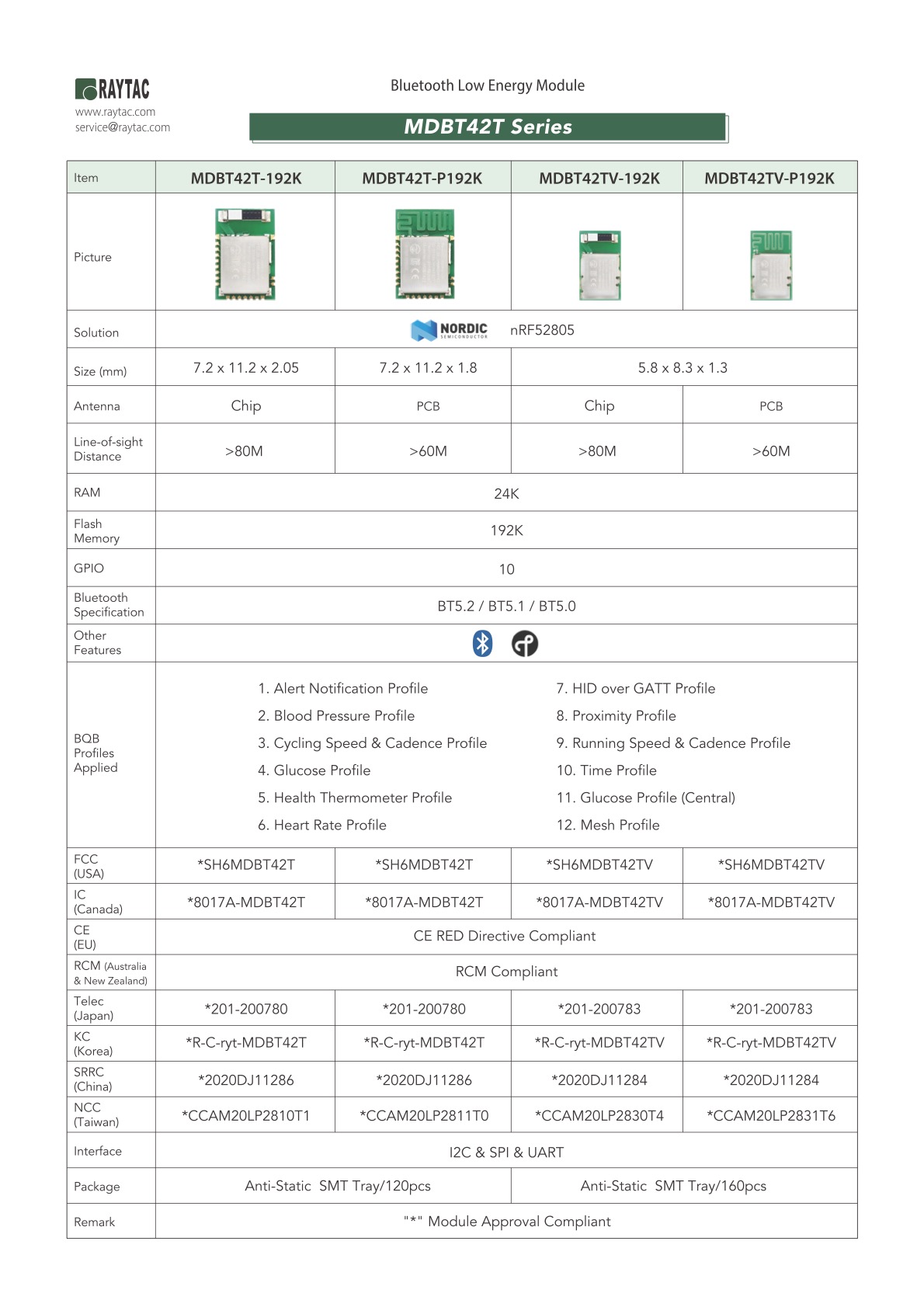

Raytac nRF52805 module spectrum covers MDBT42TV-192K and MDBT42TV-P192K  series with Chip Antenna, PCB Antenna option for selection.

MDBT42TV-192K deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42TV-P192K deployed PCB Antenna and offers a good connectivity ability.






Raytac's MDBT42TV-192K & MDBT42TV-P192K is a BT 5.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52805 SoC solution, which incorporates: GPIO, SPI, UART, I2C, and ADC interfaces for connecting peripherals and sensors.

Quick Specifications:
 •  Multi-protocol 2.4GHz radio
 •  32-bit ARM Cortex – M4 processor
 •  192KB flash programmed memory and 24KB RAM
 •  Software stacks available as downloads
 •  Application development independent from protocol stack
 •  On-air compatible with nRF51, nRF24AP and nRF24L series
 •  Programmable output power from +4dBm to -20dBm
 •  RSSI ‧RAM mapped FIFOs using EasyDMA
 •  Flexible and configurable 10 pin GPIO
 •  Programmable peripheral interface - PPI
 •  Full set of digital interface all with Easy DMA including:
 •  1 x Hardware SPI master ; 1 x Hardware SPI slave
 •  1 x two-wire master ; 1 x two-wire slave
 •  1 x UART (CTS / RTS)
 •  2 channel 12-bit / 200KSPS ADC
 •  128-bit AES ECB / CCM / AAR co-processor
 •  Low power 32MHz crystal and RC oscillators
 •  Wide supply voltage range 1.7V to 3.6V
 •  On-chip DC/DC buck converter
 •  Individual power management for all peripherals
 •  Timer counter
 •  3x 32-bit
 •  2 x 24-bit RTC
Specification：
[nRF52805] MDBT42TV-192K & MDBT42TV-P192K Spec (Ver.D)

Design Guide includes
MDBT42TV & MDBT42TV-P Footprint & Design Guide (230804)
  • Footprint (compatible for Protel, Eagle, Altium Design)
  • 2D/3D drawing
  • Reflow/Solder Profile
  • Spec for external 32.768KHz

RoHS & REACH Report：
RoHS & REACH Report for MDBT42TV & MDBT42TV-P

Related Links：
•   Nordic 3rd Party Modules/Modems
(Raytac's modules are all qualified Nordic 3rd Party Bluetooth low energy module, please go following website for more detailed information.)
