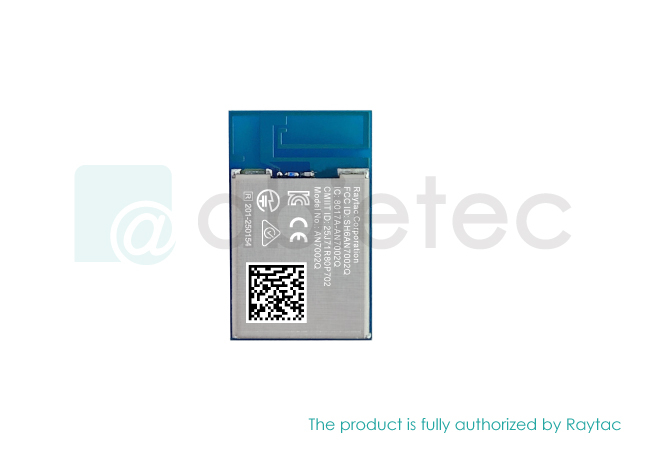

AN7002Q-P

The AN7002Q-P module integrates Nordic’s nRF7002 Wi-Fi 6 Companion IC with a PCB antenna and pre-certifications, enabling low-power Wi-Fi 6 for any SoC, MPU, or MCU host.

* Nordic nRF7002 WiFi Solution
* Dimension: 10.8 x 17.1 x 2.1 mm (0.43 by 0.67 by 0.08 inches)
* PCB Antenna
* WiFi 6
* Dual Band 2.4 GHz and 5 GHz
* Wi-Fi specification: Wi-Fi 6
* Complies with 802.11a/b/g/n/ac/ax
* Supports Target Wake Time (TWT)
* Supports Wi-Fi 6 Station (STA)
* 20 MHz channel bandwidth
* 64 QAM (MCS7), 86 Mbps PHY throughput

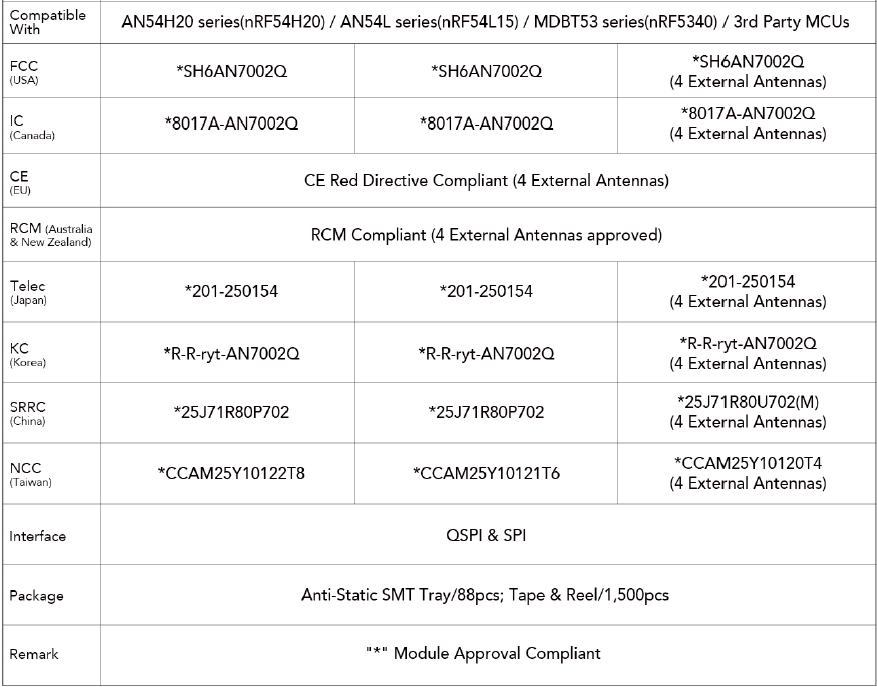

* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* RED-DA(EN18031) Compliant
BUY FROM
PRODUCT INFO
SPECIFICATION
DOCUMENT
Raytac’s nRF7002 module spectrum covers AN7002Q, AN7002Q-P, and AN7002Q-U and are a series of low power WiFi 6(dual-band 2.4 GHz and 5 GHz band support) modules designed based on Nordic nRF7002 companion solution.
The antenna ports are single-ended 50 Ω and it supports 20 MHz wide channels, 1x1 Single-Input Single-Output (SISO) operation and can deliver a PHY data rate of 86 Mbps (MCS7).

Highlights of nRF7002 solution
*Adds low-power Wi-Fi 6 (802.11ax) to any SoC, MPU, or MCU host
*Backward compatible with 802.11 a/b/g/n/ac
*Designed for IoT systems, ideal for upgrading BLE, Thread, or Zigbee solutions
*Connects via SPI / QSPI (with optional encryption)
*Supports 3-wire / 4-wire coexistence interface for multi-radio systems
*Operates as Station, Wi-Fi Direct, Soft-AP (Wi-Fi 4), or simultaneous STA + Soft-AP/Wi-Fi Direct

AN7002Q deployed Chip Antenna and offers an excellent connectivity ability.
AN7002Q-P deployed PCB Antenna and offers a good connectivity ability.
AN7002Q-U deployed u.FL connector for External Antenna and offers a super long range connectivity ability.
1. Wi-Fi® 6 companion IC with integrated RF.
2. Supports IEEE 802.11 ax and earlier standards (IEEE 802.11 a/b/g/n/ac)
3. Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access
(OFDMA), Basic Service Set (BSS) Coloring
4. Supports Wi-Fi CERTIFIED 6™, Wi-Fi CERTIFIED™, Wi-Fi Enhanced Open™
5. Supports WPA3™, WPA2™, WPA™ - Personal and Enterprise, Protected Management Frames
6. Supports WMM®, WMM - Power Save, Wi-Fi Agile Multiband™, Wi-Fi Direct®
7. Dual-band 2.4 GHz and 5 GHz operation in 1x1 (SISO) operation.
8. 3-wire or 4-wire coexistence interface and compatible with Raytac's AN54H20 / AN54LQ / AN54LV / MDBT53 series module and 3rd Party MCUs.
Specification：
[nRF7002] AN7002Q-P Spec (Ver.1.0)

Design Guide includes
AN7002Q & AN7002Q-P & AN7002Q-U Footprint_Design Guide (250722)
  • Footprint (compatible for Protel, Altium Design)
  • 2D/3D drawing
  • Reflow/Solder Profile
  • Spec for external 32.768KHz

RoHS & REACH Report：
RoHS & REACH Report for AN7002Q & AN7002Q-P & AN7002Q-U

Related Links：
•   Nordic 3rd Party Modules/Modems
(Raytac's modules are all qualified Nordic 3rd Party WiFi module, please go following website for more detailed information.)
