nRF54L15

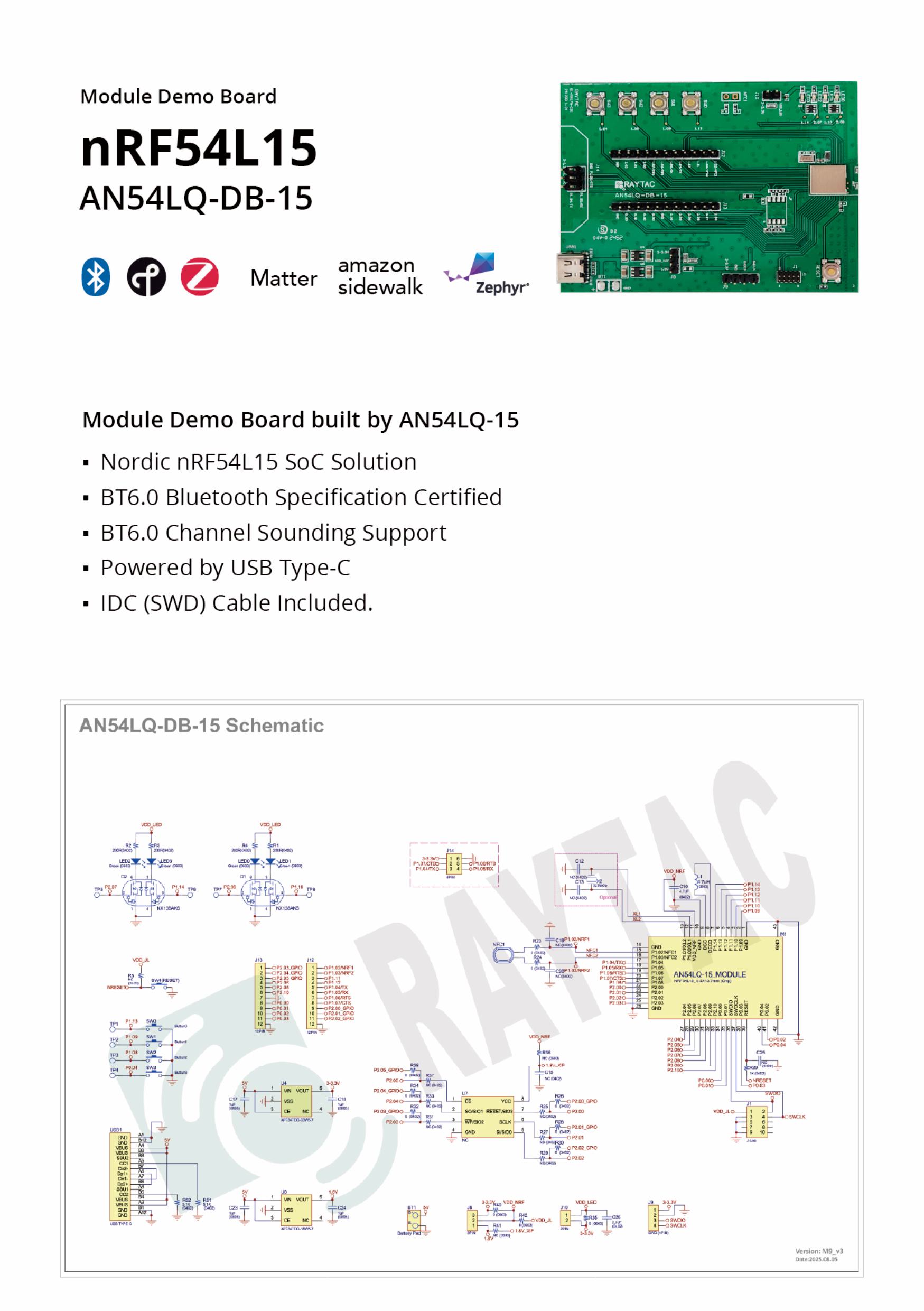

AN54LQ-DB-15

Based on the AN54LQ-15 module and Nordic’s nRF54L15 SoC, the AN54LQ-DB-15 is a development board is ideal for early-stage Bluetooth LE software development and evaluation.

* Module Demo Board built by AN54LQ-15
* Nordic nRF54L15 SoC Solution
* Chip Antenna
* 31 GPIO
* 128 MHz ARM® Cortex™ processor with TrustZone® technology
* 1.5MB Flash Memory / 256KB RAM
* Bluetooth specification BT6 certified.
* FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC certified.
* Interfaces: QSPI, SPI, UART, I2C, I2S,PDM, PWM, ADC, and NFC
* Operating temperature: -40 to +105°C
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (802.15.4), Matter, Amazon Sidewalk ultra low-power wireless applications.
* A recommended 3rd-party module by Nordic Semiconductor.

BUY FROM

PRODUCT INFO

SPECIFICATION

DOCUMENT

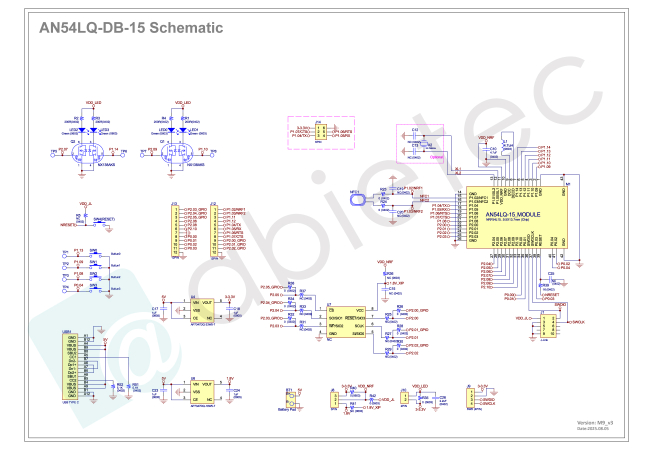

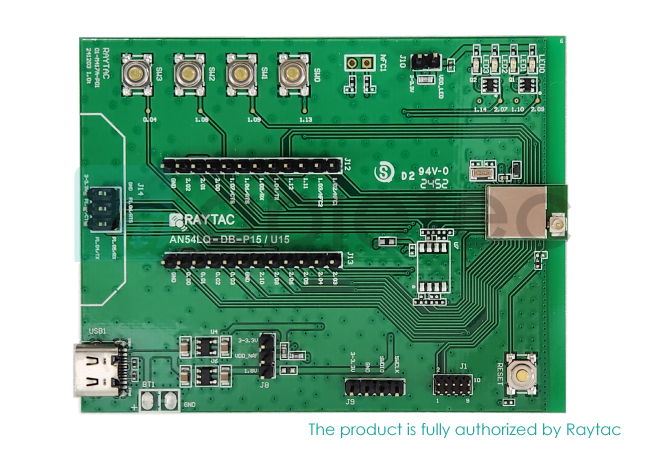

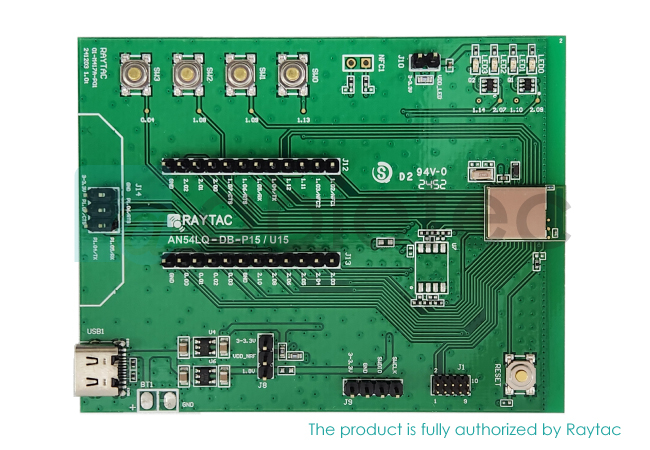

AN54LQ-DB-15 demo board is designed for quick testing and debugging without building your own board. The board is available with AN54LQ-15 (Chip Antenna), AN54LQ-P15(PCB Antenna), and AN54LQ-U15(u.FL Connector) modules.

Raytac's nRF54L15 QFN module spectrum covers AN54LQ-15, AN54LQ-P15 and AN54LQ-U15 with Chip Antenna, PCB Antenna and u.FL connector for External Antenna options for selection.

Highlights of nRF54L15 Solution
* 128 MHz Arm® Cortex®-M33 processor
* Scalable memory configurations up to 1.5 MB NVM and up to 256 KB RAM
* Multiprotocol 2.4 GHz radio supporting Bluetooth Low Energy, 802.15.4-2020, and 2.4 GHz proprietary modes (up to 4 Mbps)
* Comprehensive set of peripherals including new Global RTC available in System OFF, 14-bit ADC, and high-speed serial interfaces
* 128 MHz RISC-V co-processor
* Advanced security including TrustZone® isolation, tamper detection, and cryptographic engine side-channel leakage protection
* Security PSA Level 3

For customers looking for Good form factor may select AN54LQ series module
AN54LQ-15 deployed Chip Antenna and offers an excellent connectivity ability.
AN54LQ-P15 deployed PCB Antenna and offers a good connectivity ability.
AN54LQ-U15 deployed u.FL connector for External Antenna and offers a super long range connectivity ability
AN54LQ-DB-15 demo board is designed for quick testing and debugging without building your own board. The board is only available with AN54LQ-15 (Chip Antenna) module.

For customers looking for Smaller form factor may select AN54LV series module
AN54LV-15 deployed Chip Antenna and offers an excellent connectivity ability.
AN54LV-P15 deployed PCB Antenna and offers a good connectivity ability.
AN54LV-U15 deploys u.FL connector for External Antenna and offers a super long range connectivity ability.
AN54LV-K15 deploys Antenna Pin and offers designers for customized antenna design.
AN54LV-DB-15 demo board is designed for quick testing and debugging without building your own board. The board is only available with AN54LV-15 (Chip Antenna) module.

Raytac's AN54LQ-DB-15 is a BT6 stack (Bluetooth low energy or BLE) development kit designed based on Nordic nRF54L15 SoC solution, which incorporates: GPIO, QSPI, SPI, UART, I2C, I2S, PDM, PWM, ADC and NFC interfaces for connecting peripherals and sensors.

Features
Dual Transmission mode of BLE & 2.4GHz RF upon customer's preference.
Compact size with (L) 13.7 x (W) 9.5 x (H) 1.8mm
Low power requirements, ultra-low peak, average and idle mode power consumption.
Supports Bluetooth 6.0(Intended), 5.4, IEEE 802.15.4 & 2.4Ghz RF & ANT & upon customer's preference.
(Intended) Pre-Certified Module: FCC / IC / CE / Telec / KC / SRRC / NCC / WPC Certified & CE RED / RCM Compliant.
Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy and 2.4GHz ultra-low-power wireless applications.
Quick Specifications
128 MHz ARM® Cortex™ processor with TrustZone® technology
Supply: 1.7V – 3.6V
Flexible and configurable 31 GPIOs
Bluetooth 6.0(Intended), IEEE 802.15.4-2020, and 2.4 GHz transceiver
  •  -96dBm sensitivity in 1Mbps Bluetooth low energy (BLE) mode
  •  -104 dBm sensitivity in 125 kbps Bluetooth Low Energy mode (long range) with a 0.1% bit error rate
  •  -102 dBm typical sensitivity in IEEE 802.15.4
  •  Up to +8 dBm TX power; 1 dB step size from -8 dBm to +8 dBm
  •  RSSI (1dB resolution)
Supported data rates:
•  Bluetooth 6.0: 2Mbps, 1 Mbps, 500 kbps, 125 kbps
•  IEEE 802.15.4-2020: 250 kbps
•  Proprietary 2.4 GHz: 4 Mbps, 2 Mbps, 1 Mbps
•  Advanced on-chip interfaces
  •  RISC-V Coprocessor
  •  Global RTC (GRTC) that can run in System OFF mode and implement a shared system timer
  •  Seven 32-bit timers with counter mode
  •  Up to five fully featured serial interfaces with EasyDMA, supporting I2C, SPI controller/peripheral, and UART
  •  One high-speed SPIM up to 32 MHz, four up to 8 MHz
  •  One high-speed UARTE up to 4 Mbps, four up to 1 Mbps
  •  I2C up to 400 kHz
  •  Three pulse width modulator (PWM) units with EasyDMA
  •  I2S two channel Inter-IC sound interface
  •  ADC with up to eight programmable gain channels. 14-bit at 31.25 ksps,
12-bit at 250 ksps, and up to 10-bit at 2 Msps
  •  Pulse density modulation (PDM) interface
  •  Near field communication (NFC)
  •  Up to two quadrature decoders (QDEC)
  •  Comparator and low-power comparator with wake-up from System OFF mode
  •  Temperature sensor
Operating Temp: -40°C to +105°C
Platform security
  •  Secure/non-secure memory protection
  •  Symmetric and asymmetric key crypto accelerator
  •  ecure key management
  •  Tamper detection
  •  Immutable boot partition
  •  Debug access port protection
  •  Two watchdog timers for secure and non-secure access

Specification：
[nRF54L15] AN54LQ-15(Prev. AN54L15Q)_Preliminary Spec (Ver.0.2)

Design Guide includes
AN54LQ-15 & AN54LQ-P15 & AN54LQ-U15 Footprint & Design Guide (250919)

Footprint (compatible for Protel, Altium Design)
2D/3D drawing
Reflow/Solder Profile

RoHS & REACH Report：
RoHS & REACH Report for AN54LQ-15 & AN54LQ-P15 & AN54LQ-U15

Related Links：
• Nordic 3rd Party Modules/Modems
(Raytac's modules are all qualified Nordic 3rd Party Bluetooth low energy module, please go following website for more detailed information.)
