AN02U53U
WiFi:
* Nordic nRF7002 WiFi Solution
* WiFi 6
* Dual Band 2.4 GHz and 5 GHz
* Wi-Fi specification: Wi-Fi 6
* Complies with 802.11a/b/g/n/ac/ax
* Supports Target Wake Time (TWT)
* Supports Wi-Fi 6 Station (STA)
* 20 MHz channel bandwidth
* 64 QAM (MCS7), 86 Mbps PHY throughput
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* RED-DA(EN18031) Compliant.
* Dimension: 10.8 x 16.4 x 2.1 mm (0.43 by 0.64 by 0.08 inches)
* u.FL connector for external antenna
Bluetooth:
* Nordic nRF5340 SoC Solution
* Dual-core Arm® Cortex® M33
* 1MB/256KB Flash Memory; 512kB/ 64kB RAM
* Bluetooth specification v5.4
* Supports Bluetooth Direction Finding & Mesh
* Supports Bluetooth low energy audio
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* Dimension: 9.3 x 14.3 x 1.85 mm
* 48 GPIO
* u.FL connector for external antenna
* Interfaces: SPI, QSPI, High Speed SPI, UART, I2C, I2S, PWM, ADC, NFC, and USB
* Operating temperature: -40 to +85°C
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (802.15.4) ultra low-power wireless applications.
* A recommended 3rd-party module by Nordic Semiconductor.
* Nordic nRF7002 WiFi Solution
* WiFi 6
* Dual Band 2.4 GHz and 5 GHz
* Wi-Fi specification: Wi-Fi 6
* Complies with 802.11a/b/g/n/ac/ax
* Supports Target Wake Time (TWT)
* Supports Wi-Fi 6 Station (STA)
* 20 MHz channel bandwidth
* 64 QAM (MCS7), 86 Mbps PHY throughput
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* RED-DA(EN18031) Compliant.
* Dimension: 10.8 x 16.4 x 2.1 mm (0.43 by 0.64 by 0.08 inches)
* u.FL connector for external antenna
Bluetooth:
* Nordic nRF5340 SoC Solution
* Dual-core Arm® Cortex® M33
* 1MB/256KB Flash Memory; 512kB/ 64kB RAM
* Bluetooth specification v5.4
* Supports Bluetooth Direction Finding & Mesh
* Supports Bluetooth low energy audio
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* Dimension: 9.3 x 14.3 x 1.85 mm
* 48 GPIO
* u.FL connector for external antenna
* Interfaces: SPI, QSPI, High Speed SPI, UART, I2C, I2S, PWM, ADC, NFC, and USB
* Operating temperature: -40 to +85°C
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (802.15.4) ultra low-power wireless applications.
* A recommended 3rd-party module by Nordic Semiconductor.
PRODUCT INFO
SPECIFICATION
DOCUMENT
1 × AN7002Q-U – Wi-Fi 6 nRF7002 module with PCB Antenna
1 × MDBT53-U1M – BLE nRF5340 module with PCB Antenna
These modules can be integrated onto a single PCBA to enable dual wireless connectivity for Wi-Fi + BLE applications.
For individual product details, please visit:
AN7002Q-U Product Info
MDBT53-U1M Product Info
For respective Product Specifications, please visit the below:
AN7002Q-U Product Specification
MDBT53-U1M Product Specification

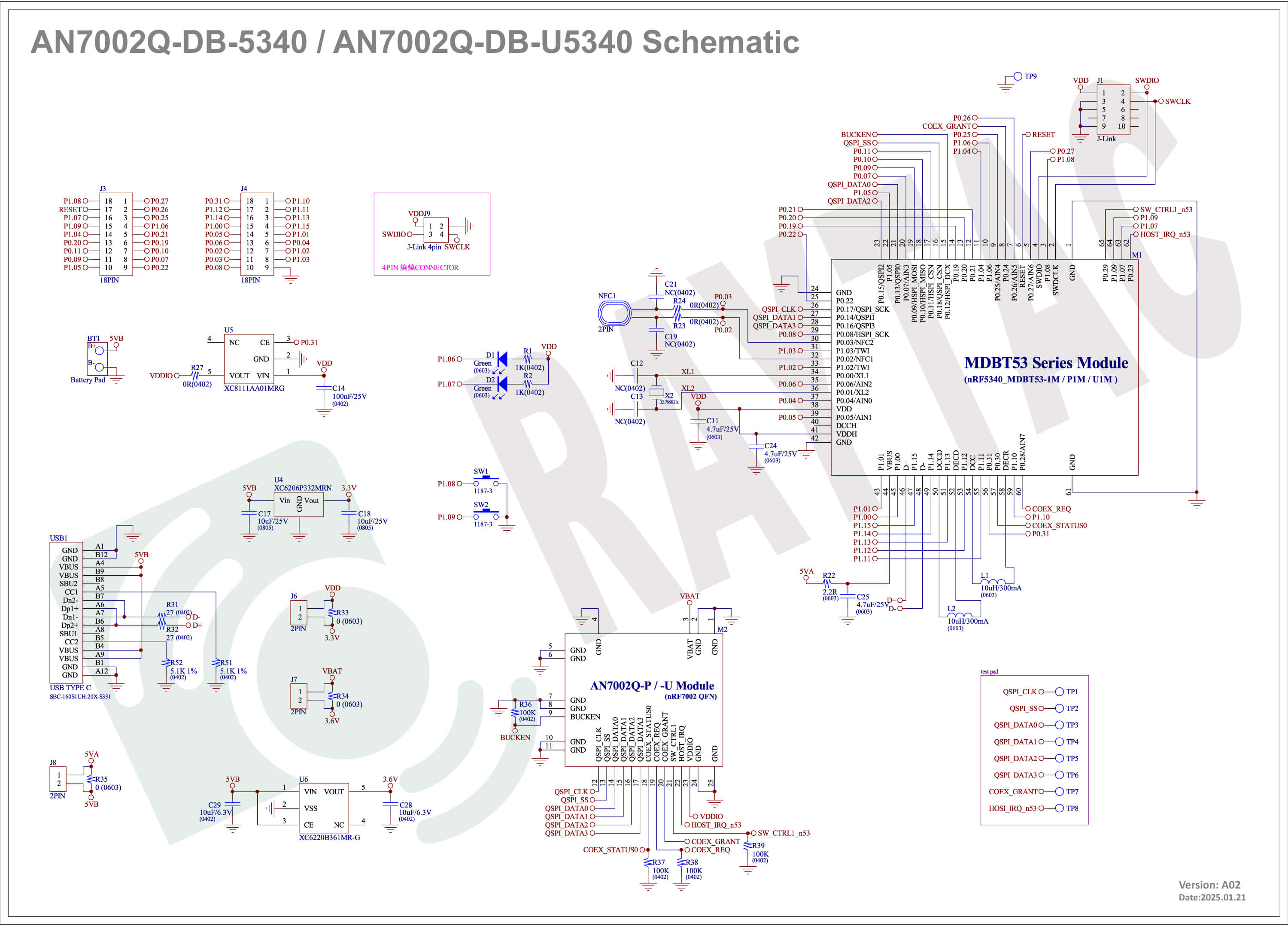

AN02U53U Suggested Schematic Design(Click on the image to zoom in):
AN7002Q-U Product Specification
MDBT53-U1M Product Specification
AN02U53U Suggested Schematic Design(Click on the image to zoom in):
[nRF7002] AN7002Q-U_Preliminary Spec (Ver.0.9)
Specification(Bluetooth)：
[nRF5340] MDBT53-U1M Spec (Ver.D)
Design Guide includes
AN7002Q & AN7002Q-P & AN7002Q-U Footprint_Design Guide (250722)
MDBT53 & MDBT53-P & MDBT53-U Footprint & Design Guide (241021)
- Footprint (compatible for Protel, Altium Design)
- 2D/3D drawing
- Reflow/Solder Profile
- Spec for external 32.768KHz
RoHS & REACH Reports：
RoHS & REACH Report for AN7002Q & AN7002Q-P & AN7002Q-U
RoHS & REACH Report for MDBT53 & MDBT53-P & MDBT53-U
