MDBT42Q-P192KV2

* Nordic nRF52810 SoC Solution
* A recommended 3rd-party module by Nordic Semiconductor.
* BT5.4 & BT5.2 & BT5.1 & BT5 & BT4.2 Bluetooth Specification Certified.
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC
* 32-bit ARM® Cortex™ M4 CPU
* 192kB Flash Memory / 24kB RAM
* RoHS & Reach Compliant.
* Dimension：10 x 16 x 2.2 mm
* 32 GPIO
* Chip Antenna
* Interface: SPI, UART, I2C, I2S, PWM
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+ and 2.4GHz ultra low-power wireless applications.
BUY FROM
PRODUCT INFO
SPECIFICATION
DOCUMENT

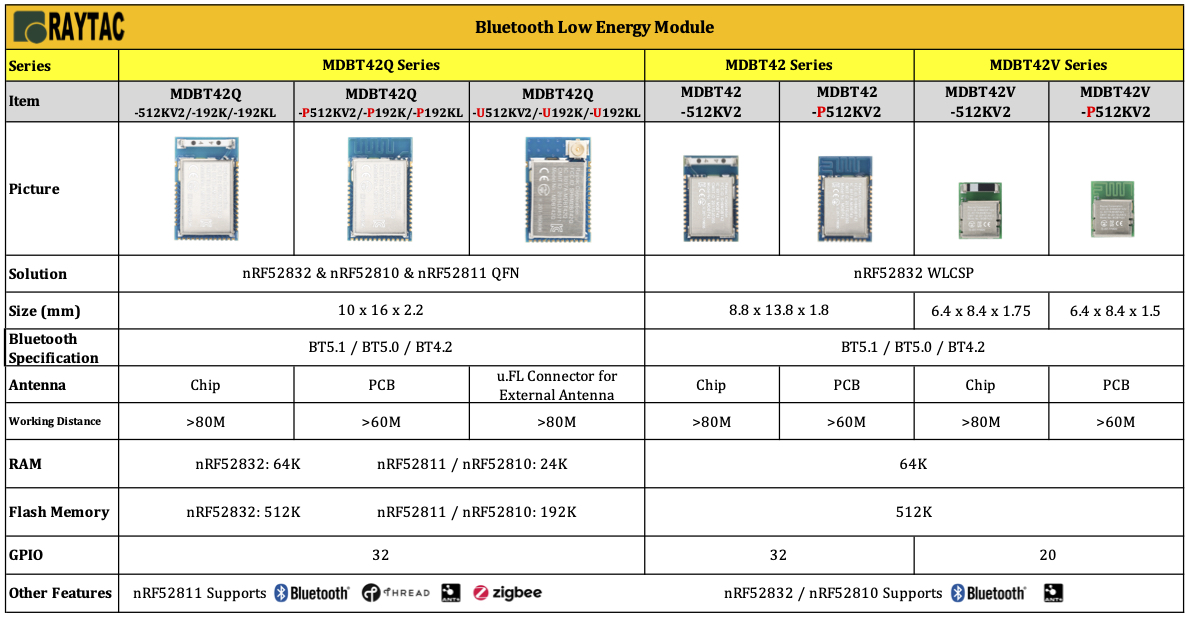

Raytac's MDBT42Q-192KV2 and MDBT42Q-P192KV2 module deployed Nordic nRF52810 solutioin features an Arm Cortex-M4 processor with 192 KB Flash and 24 KB RAM with 32 GPIO available. Supports SPI, UART, I2C, PWM interfaces with both Chip Antenna and PCB Antenna option for selection.

For customers looking for Small form factor, nRF52805 Solution and 10 GPIO may select MDBT42T series module
MDBT42T-192K deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42T-P192K deployed PCB Antenna and offers a good connectivity ability.

For customers looking for Tiny form factor, nRF52805 Solution and 10 GPIO may select MDBT42TV series module
MDBT42TV-192K deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42TV-P192K deployed PCB Antenna and offers a good connectivity ability.

For customers looking for Entry Level, BT5 Long Rage, Multiprotocol nRF52811 SoC, MBT42Q offers a pin to pin compatible module solution.
MDBT42Q-192KL deployed Chip Antenna and offers a excellent connectivity ability.
MDBT42Q-P192KL deployed PCB Antenna and offers a good connectivity ability.



Raytac's MDBT42Q-192KV2 & MDBT42Q-P192KV2 is a BT5.4 qualifed module designed based on Nordic nRF52810 SoC solution, which incorporates: SPI, UART, I2C, PWM interfaces for connecting peripherals and sensors.

Bluetooth Qualified Specification: BT5.4 / BT5.3 / BT5.2 / BT5.1 / BT5
Regional Regulation Pre-Certified: FCC/IC/CE/Telec/KC/SRRC/NCC/WPC/UKCA

Quick Specifications
  • 32-bit ARM® Cortex™ M4 CPU
  • Supply: 1.7V – 3.6V
  • Memory: 192kB Flash Memory
  • RAM: 24kB
  • Tx Power: +4 dBm @ 7.5mA, 0 dBm @ 5.3mA
  • Rx Sensitivity: -96 dBm @ 5.4mA
  • Flexible and configurable 32 GPIO (8 analog inputs)
  • Interfaces: SPI / UART / I2C / PWM
  • Full set of digital interface all with Easy DMA including: ‧1 x Hardware SPI master ; 1 x Hardware SPI slave ‧1 x two-wire master ; 1 x two-wire slave ‧1 x UART (CTS / RTS) ‧PDM for digital microphone
  • 12-bit / 200KSPS ADC
  • 128-bit AES ECB / CCM / AAR co-processor
  • Low cost external crystal 32MHz ± 40ppm for Bluetooth ; ± 50ppm for ANT Plus
  • Low power 32MHz crystal and RC oscillators
  • Operating Temp: -40°C to +85°C
Specification：
[nRF52810] MDBT42Q-192KV2 & MDBT42Q-P192KV2 Spec (Ver.L)

Design Guide includes
MDBT42Q & MDBT42Q-P & MDBT42Q-U Footprint_Design Guide (230616)
  • Footprint (compatible for Protel, Eagle, Altium Design)
  • 2D/3D drawing
  • Reflow/Solder Profile
  • Spec for external 32.768KHz

RoHS & REACH Report：
RoHS & REACH Report for MDBT42Q & MDBT42Q-P & MDBT42Q-U
